The Helmet

Jeff sporting his custom made rebel Sodier helmet

The Endor Rebel Soldier helmet is comprised of:

  • a World War 2 Flight helmet (the AN-H-15 )
  • a hard donut-style armor
  • a ribbed cloth top
  • a stiff cloth-covered visor
  • and two leather cheek flaps

AN-H-15 Flight Helmet

The basic design of the Endor Rebel Soldier helmet came from a World War 2 AN-H-15 trainers helmet. Lucasfilm hired Nilo Rodis-Jamero to make these helmets and he states: "I used to go to a surplus store, and I had seen a lot of helmets that were made out of cloth. So I bought some of them and adapted them to a new original design." -From Star Wars The Annotated Screenplays by Laurent Bouzereau, published by Del Rey.

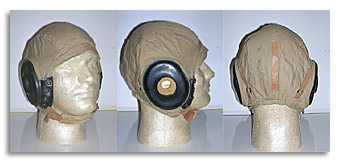

an-h-15_front.gif an_h_15_muliangle_sml.jpg gleamed this manufacturer information off the inside of an actual Endor Rebel Soldier helemt over at LucasFilms:

Order No. 44-6446-AF
St. No. 8300-401500
      Everyone needs to go over and thank for this information.


HardShell Donut

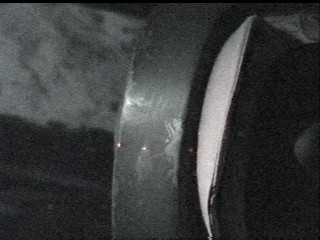

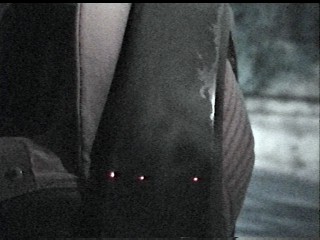

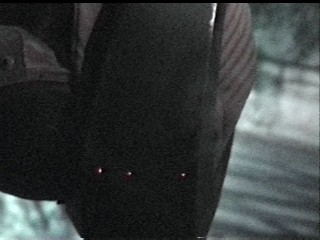

reh_hlmt_fronthght reh_hlmt_sidehght reh_hlmt_sidehgth02

More to come about the Hardshell Donut as we build it.


Ribbed Cloth Top


On top of the Rebel helmet lays a strip of ribbed cloth. This is cloth piece starts out narrow at the front, widens out in the middle, then tapers narrow to the back. The narrowest part is probably only 2.5 cm (1 inch) narrower than the widest part (1.25 cm on each side). Notice the measurements of B and C in the diagram.


The ribbing is especially difficult to sew. We count 27 ribs showing in the small area that the ribbed cloth is exposed. That means the ribs are about 5 mm (3/8 inch) apart. Possibly even smaller. we'll know more once we sew our ribbed piece. Email us if you beat us to the sewing table though, we'd love to discuss the ribbing with other costuming fans who are attempting this part.


The ribbed cloth has a bias strip sewn to the edges of the ribbing. Notice in this screen capture that they stitched the bias twice, once near the ribbing and once near the outside edge. Because of this double stitching, we think the bias is comprised of two different pieces of cloth sandwiching the ribbed cloth above and below, then everything is stitched together.


Cloth-covered Visor

Helmet visor close up

In this closeup of Luke Skywalker, we can clearly see black "cell foam" in the ear holes of the helmet (arrow A).

We also see that the stiff cloth-covered visor attached to the helmet puckers up at the base of the hardshell donut (arrow B). I personally think the visor is glued to the inside of the donut, and not stitched to the cloth AN-H-15 helmet. The joining edge between the donut and the visor is just to perfect to be any other way. Email me and discuss this if you care to. I am open to any evidence/research that might disprove my theory.

Notice the seam running along the edge of the visor also (arrow C). This means the visor is two pieces of cloth, sewn along the curved edge, then turned inside out to make this seam. Slip in your stiff visor material (cardboard or thin plastic) and you are ready to attach the visor to the rest of the helmet.


Cheek Leather


In this screen captured image above, notice the different height positioning of the hardshell donut in comparison to the black ear muffs (arrow A). On Leia's helmet the donut sits lower in the ear than on the generic Soldier's helmet. This is probably due to smaller heads, or possibly the craftsmen did not take the time to sit the soldiers helmet square on to his head.

Also notice how large the leather cheek flap is (arrow C). this cheek flap covers up the connection point of the leather chin strap to the cloth helmet. The rounded bottom and darker leather of the cheek flap helps the helmet look more beefy than it originally was. Please do not forget to sew this leather piece onto your helmet.

Arrow B points to the indented area of the back of the hardshell donut. This indention is crucial to fabricate into your own hardshell donut.

More info to come on this section as we finish making our costume. We are currently in the process of mastering our Hardshell-Donut.
